Introducing the BMC Teammachine R 01 FOUR, a pinnacle of engineering and design, crafted for cyclists who demand unparalleled performance and precision. Developed in collaboration with Red Bull Advanced Technologies, this road racing bike redefines speed and agility on every terrain.

Key Features:

  • Advanced Aerodynamics: The Teammachine R 01 FOUR boasts a revolutionary Halo Fork with ultra-wide parallel legs, directing turbulent air away from the frame to reduce drag. Its deep head tube and integrated ICS Carbon Aero Cockpit ensure a streamlined profile, enhancing aerodynamic efficiency.

  • Precision Engineering: Equipped with the Shimano Ultegra Di2 12-speed electronic drivetrain, riders experience seamless and responsive shifting. The CR 50 SL Carbon wheelset, optimized for aerodynamics, offers exceptional speed and stability.

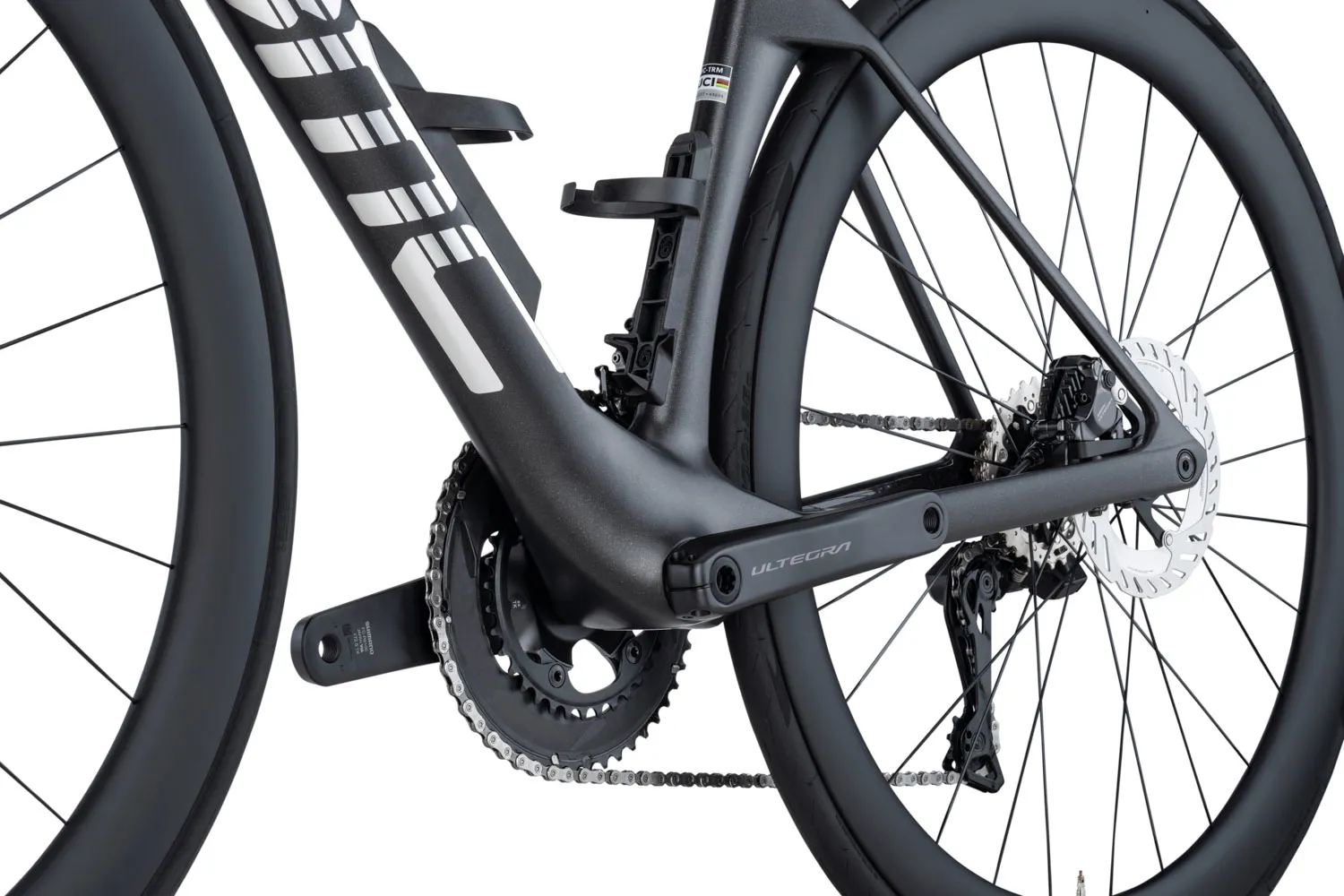

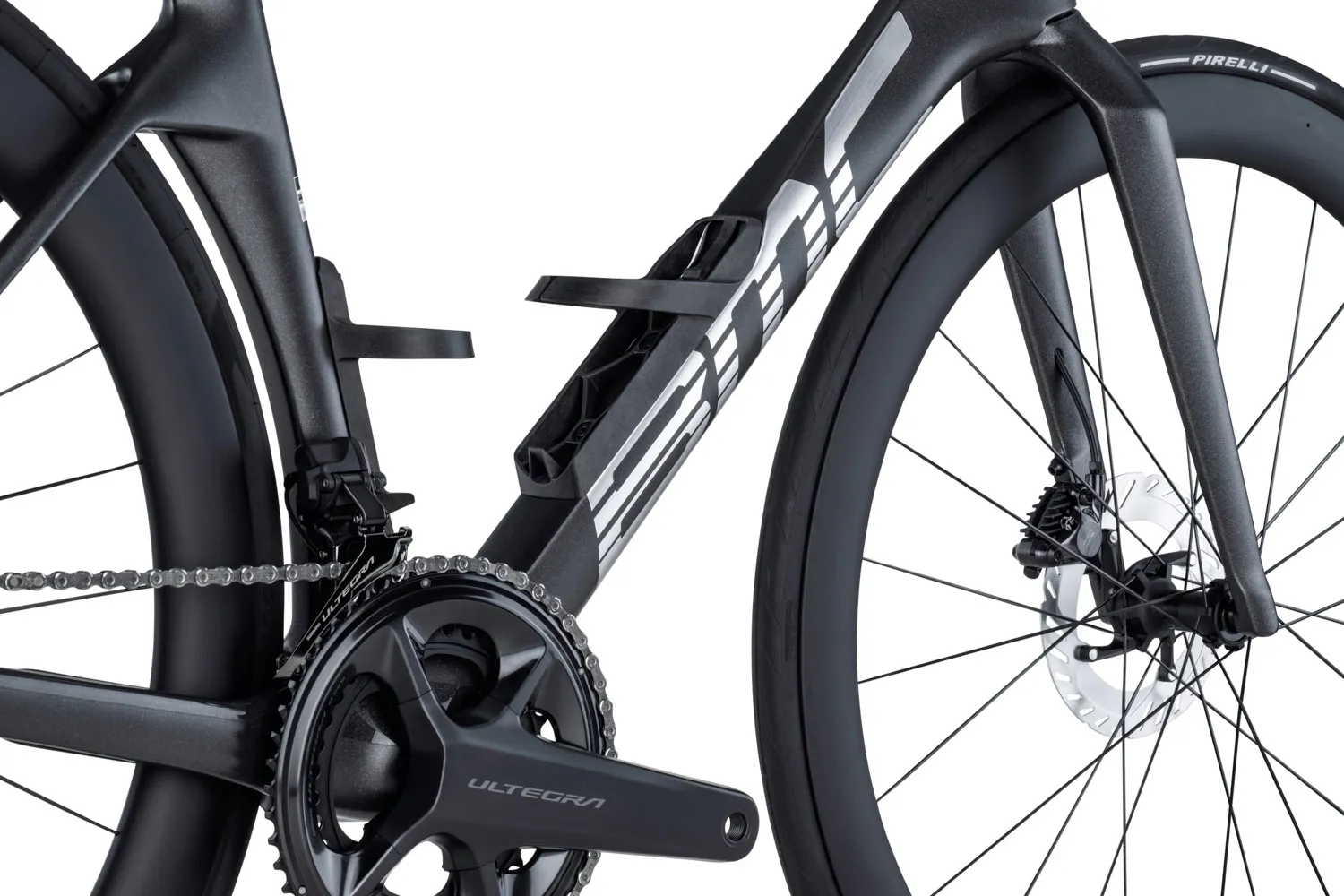

  • Innovative Design Elements: The "Mariana" bottom bracket design enhances airflow and provides maximum rigidity for efficient power transfer. The integrated Aerocore bottle cages not only reduce drag but also improve the bike's center of gravity, making it faster even with bottles onboard.

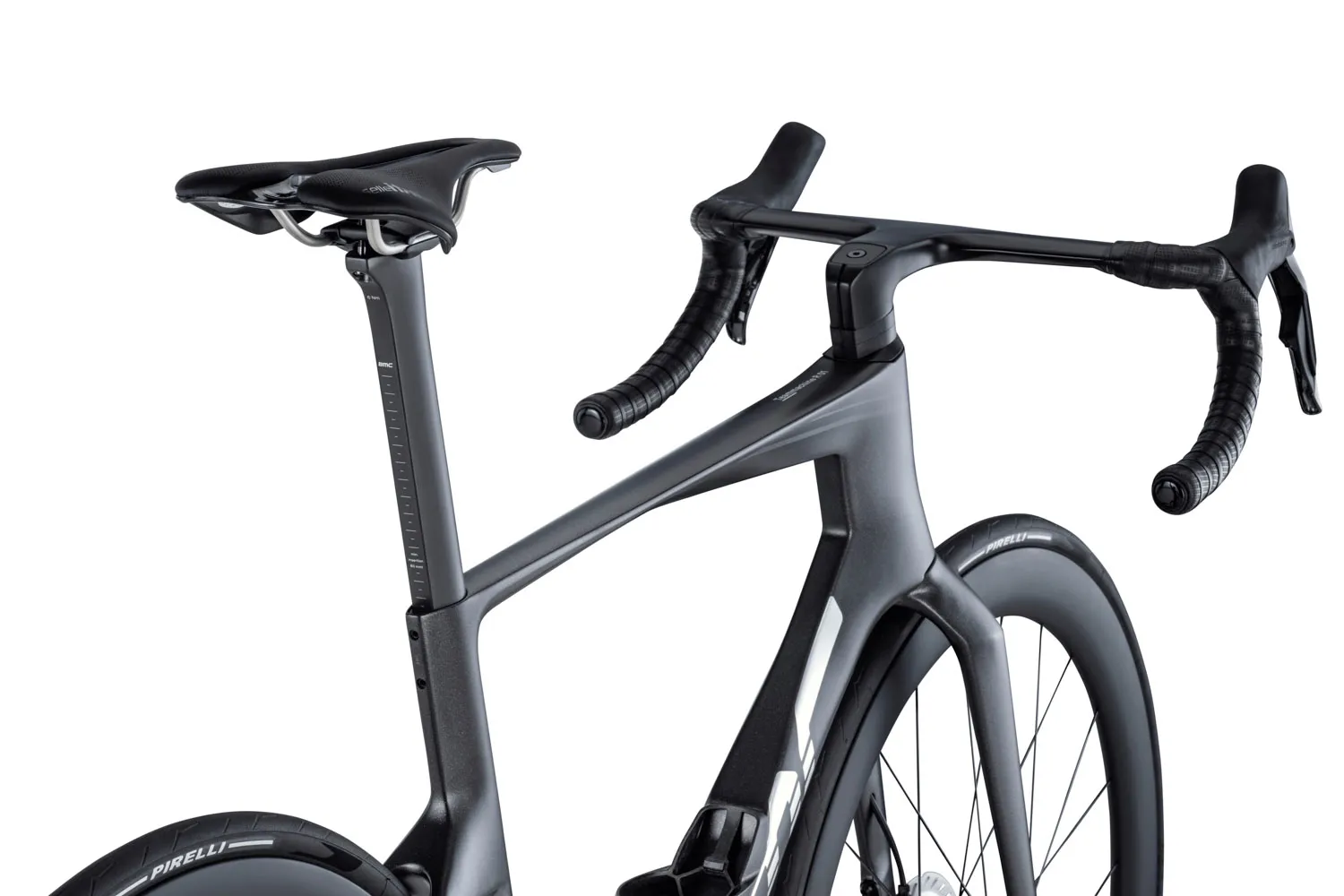

  • Comfort and Control: The ICS Carbon Aero one-piece cockpit offers an aerodynamic position with a narrow upper section and a wide base for improved control. The Teammachine R 01 Premium Carbon Seatpost, with a 10mm offset, ensures rider comfort during long rides.

Technical Specifications:

  • Frame: Teammachine R 01 Premium Carbon with Aerocore design, internal cable routing, Stealth Dropout design, Flat Mount Disc brakes, 12 x 142 mm thru-axle.

  • Fork: Teammachine R 01 Premium Carbon, ICS technology for internal cabling, Stealth Dropout design, Flat Mount Disc brakes, 12 x 100 mm thru-axle.

  • Drivetrain: Shimano Ultegra Di2 12-speed electronic shifting system.

  • Wheelset: CR 50 SL Carbon, tubeless-ready, 50mm depth.

  • Weight: Approximately 7.2 kg (size 54, without pedals).



FRAME 01 Premium Carbon with Aerocore Design; ICS Technology Stealth Cable Routing; Stealth Dropout Design; Flat Mount Disc; 12 x 142mm Thru-Axle; 30mm tyre clearance
FRAME SIZE 47, 51, 54, 56, 58, 61
FORK 01 Premium Carbon; ICS Technology Stealth Cable Routing; Stealth Dropout Design; Flat Mount Disc; 12 x 100mm Thru-Axle
FRONT DERAILLEUR SHIMANO Ultegra Di2 (FD-R8150)
REAR DERAILLEUR SHIMANO Ultegra Di2 (RD-R8150)
SHIFTERS SHIMANO Ultegra Di2 (ST-R8170)
BRAKES SHIMANO Ultegra (BR-R8170)
ROTORS SHIMANO Ultegra (RT-CL800)
CRANK SHIMANO Ultegra (FC-R8100); 52-36T
POWER METER 4iiii Precision Gen3+ Power Meter (Non-Drive Side)
BOTTOM BRACKET SHIMANO Press Fit SM-BB72
CHAIN SHIMANO CN-M8100
CASSETTE SHIMANO Ultegra (CS-R8101); 11-30T
HANDLEBAR ICS Carbon Aero; One-Piece Full Carbon Cockpit; 135mm drop, 77mm reach, 12.5° flare
SEATPOST Teammachine R 01 Premium Carbon Seatpost; 10mm Offset
SADDLE Selle Italia SLR Boost Superflow ; TI316 Rail ; 145mm
HUBS TXC-812 & TXC-240 Centerlock
RIMS CR 50 SL Carbon ; Tubeless Ready ; 50mm
TYRES Pirelli P Zero Race TLR; 26mm
OTHER Tubeless Rim; Tubeless Tires; Aerocore Design Carbon Bottle Cages included
WEIGHT 7.2kg ; Size 54 with all accessories
SKU BMRE26300068
Brand BMC
Shipping Weight 15.0000kg
Shipping Width 0.250m
Shipping Height 0.800m
Shipping Length 1.500m
Shipping Cubic 0.300000000m3
