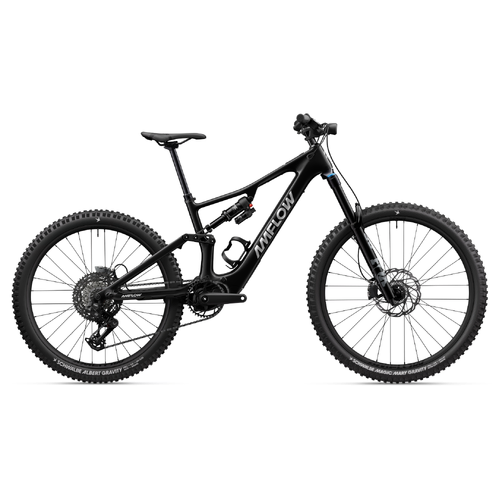

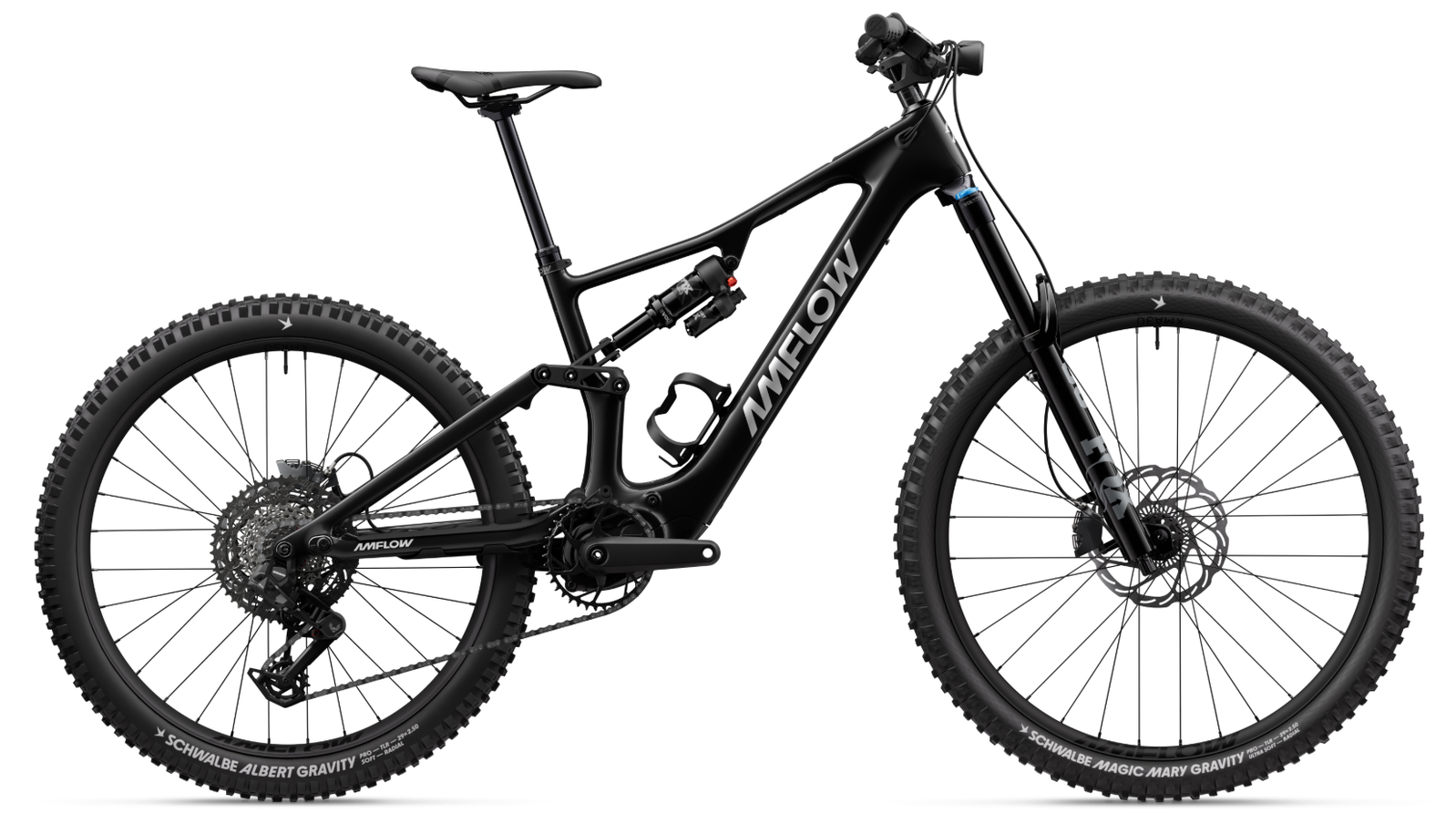

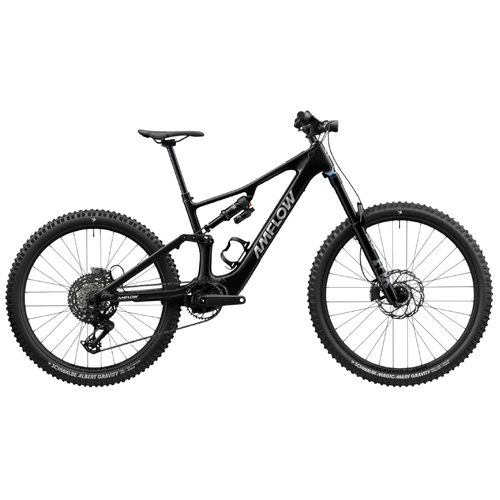

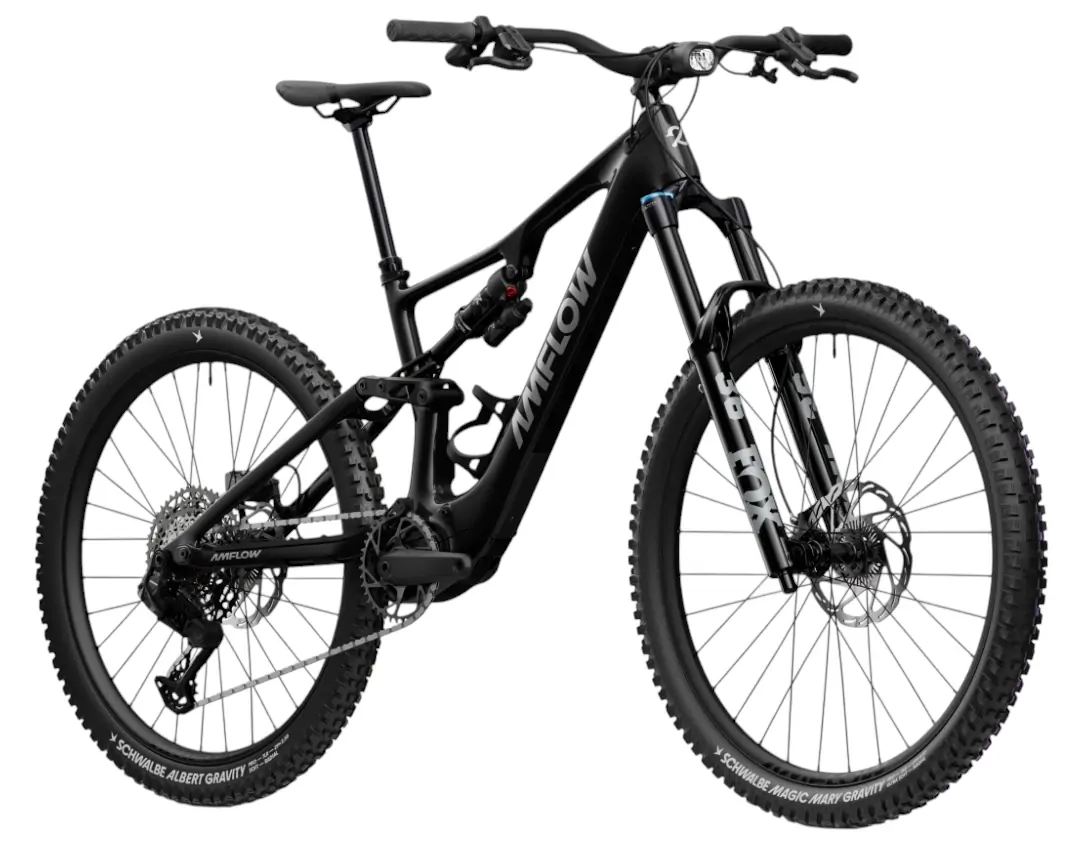

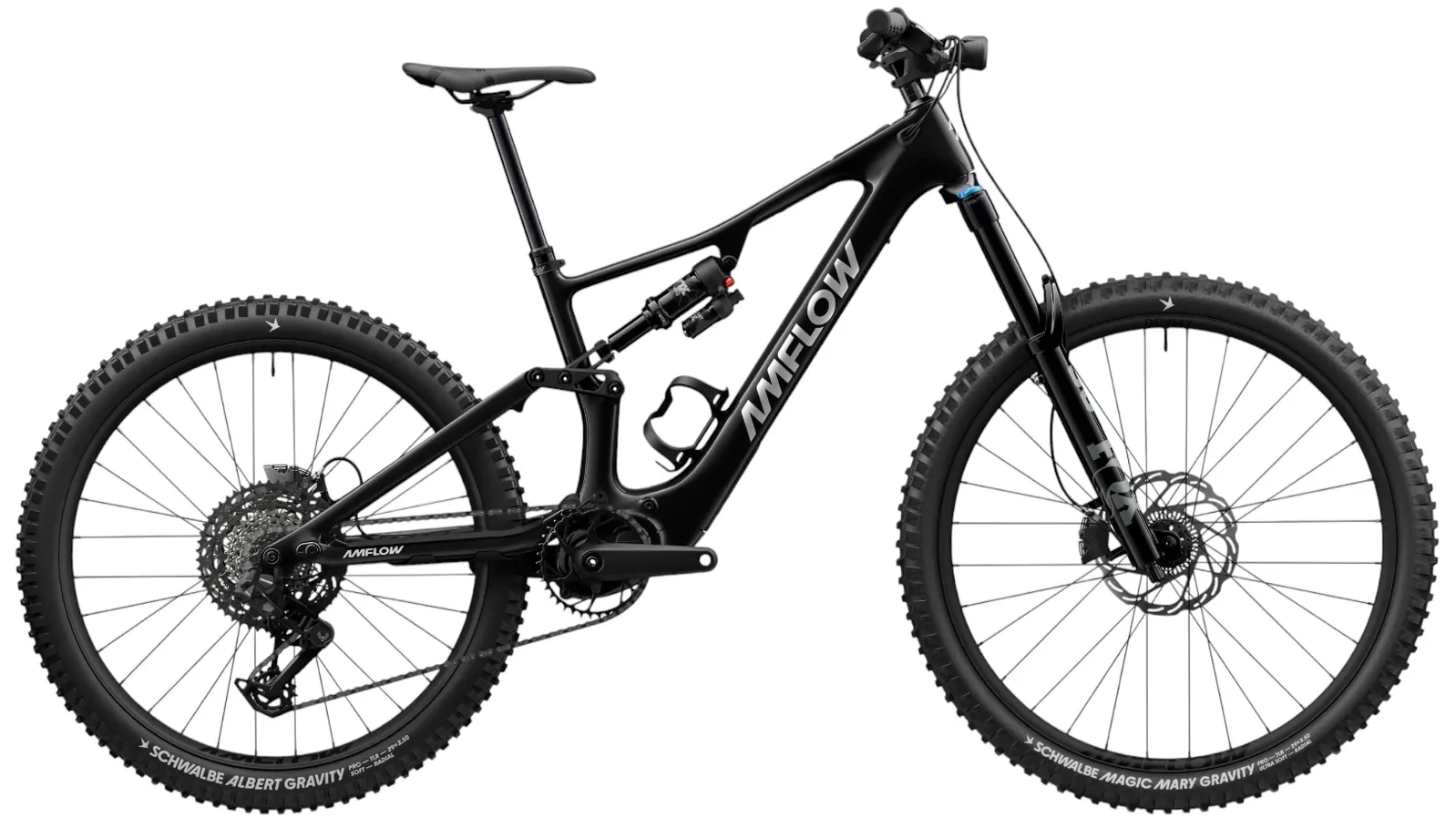

2027 Amflow PX Carbon E-MTB - Phantom Black - Size L
$9,999.00
Amflow PX Carbon
Frame
Amflow PX Carbon Frame
Phantom Black
40 adjustable geometry configurations
Compatible with 27.5″ and 29″ rear wheels
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Performance (MY 2027)
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance (MY 2027)
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tyres
Front: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
Rear: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial
Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
M/L Frame: 190mm
XL Frame: 210mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide
| SKU | CP.EB.007002 |
| Brand | Amflow |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.900m |
| Shipping Length | 1.740m |
| Shipping Cubic | 0.422820000m3 |
