Ultimate is not just a name, it’s the word we reserve for pinnacle performance. And it’s now finally compatible with tubeless and clincher tyres and for disc brake bikes.

At just 1255g, this wheelset is the ultimate balance of lightweight, stiffness and aerodynamics.

Pair : 1255 grams
Front : 575 grams
Rear : 680 grams

About the Product Process

The physical creation of each Cosmic Ultimate wheel takes 8 hours. The builder uses a unique lay-up system created by Mavic engineers using 98 carbon pieces (a sample of which is included with every new wheelset), which has been precisely cut by a CNC machine. Each piece is then carefully positioned by hand in a specific molds to shape the rim, the spokes and the hub.

Mavic's precision and accuracy in the whole development process allows them to precisely tune and tension together these components and unveil this wonderfully handcrafted exclusive wheel.

As part of the development process the product has been validated in 35 lab tests, supported by hundreds of riding hours by professional racers in order to acheive a unique reliability, outstanding performance and dynamic behaviour.


Detailed Product Information

The rim is engineered with a NACA-inspired, full-carbon profile that’s 45mm deep and 27mm wide. It’s made from a complex lay up that optimizes the stiffness to weight ratio. Its external layer takes our distinctive UD² finish. The rim is not drilled, so it doesn't require the use of a rim tape to become airtight: a guarantee for a hassle free tubeless use.

The 20 elliptical carbon fiber spokes and high, thin carbon hub flanges offer a proven aero advantage.

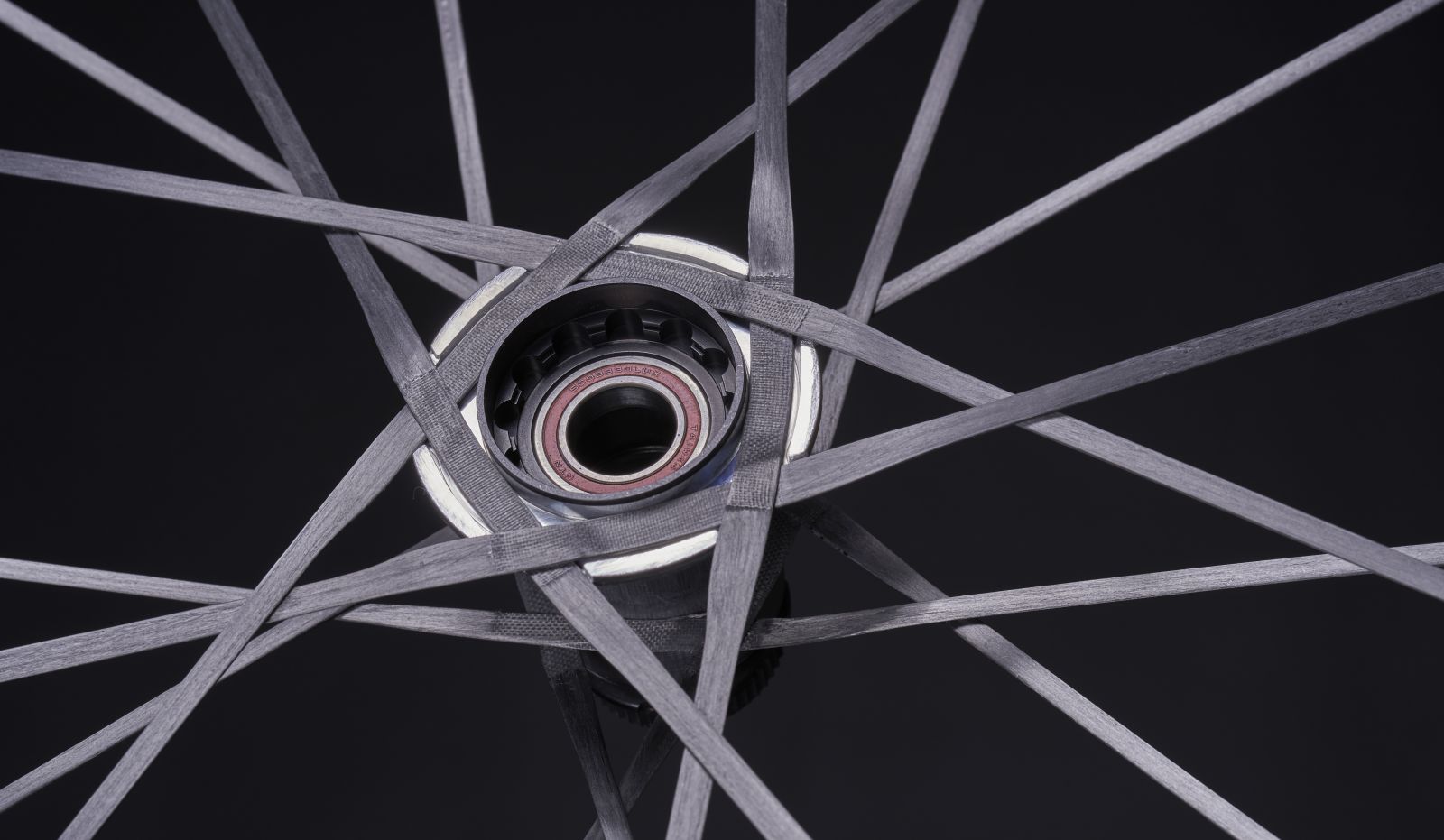

The spokes are made with unidirectional carbon fibers, so they don’t stretch. The spokes run continuously from one edge of the rim to the other, through the hubs (R2R technology), creating one single spoke instead of two. This adds wheel stiffness and eliminates the need to mechanically attach the spokes to the hub.

Inside the carbon hub shells, the axles are paired with automatically adjusted sealed cartridge bearings for perfect preload. At the back, the ID360 freewheel system provides instant engagement (40 points of engagement = 9°) and low friction. The hubs are thru-axle compatible (12x100 up front and 12x142 at the back) and made for Center Lock brake rotors.

These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in France.
They benefit from a lifetime warranty and from a generous crash replacement policy (upon on-line registration at Mavic.com/care) .

Key Features

Ultralight and aero help you climb, sprint and accelerate faster​

Monobloc full carbon construction
45mm NACA rim profile seamlessly laced with elliptical spokes on high thin hub flanges

Stiffest wheel system in its class​ with super low rolling resistance for high reactivity

Carbon spokes with high tensile resistance
Rim to rim (R2R) lacing system
Tapeless tubeless UST rim

Handmade in France

Manual molding and assembling process
Developed and manufactured in the Mavic carbon workshop in Annecy, France
Delivered with exclusive wheelbag

SPECIFICATIONS

Rims

  • Material: 100% carbon fiber with UD external layer
  • Height: 45 mm
  • Drilling: co-molded Fore drilled inserts
  • Disc brake specific profile
  • Valve hole diameter: 6.5 mm
  • Tire: UST Tubeless and tubetype
  • Internal width: 19 mm
  • ETRTO size: 622x19TC

Spokes

  • Material: unidirectional carbon fiber
  • Count: 20 front and rear
  • Lacing: front and rear crossed 2
  • R2R carbon spoke technology

Hubs

  • Front and rear bodies: Carbon
  • Axle material: aluminum
  • Instant Drive 360 freewheel technology
  • QRM Auto bearing preload technology
  • Front: Quick release and 12x100 through axle compatible
  • Rear: Quick Release, 12x142 and 12x135 compatible
  • Hub available for Center Lock brake rotors only

Versions

  • Color: Black only
  • Disc standard: Center Lock® only
  • Freewheel: Shimano/Sram

Compatibility

  • Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
  • Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters and axle replacement
  • Front axle: 12x100 thru axle, easily convertible to quick release with optional adapters. Not compatible with 15mm through axles

Compatible Adapters and freewheel bodies

  • 12 to 9mm front adapter for quick release (V2680301)
  • 12 to 9mm rear adapter for quick release (V2510801 (with axle V2373401)
  • 12x135 rear axle adapters (V2510901) with axle V2373401
  • ID360 Shimano / Sram Light freewheel body (V3850101)
  • ID360 Campagnolo freewheel body (V3440101)
  • ID360 XD-R freewheel body (V2580101)
  • ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
  • ID360 N3W freewheel body (V4270101)

Delivered with

  • Computer magnet (99624501)
  • User guide

Intended use

  • ASTM CATEGORY 1 : road only
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
  • Maximum tyre pressure: 6.75bar/97PSI with a 23mm tyre - 3.8bar/55PSI with a 62mm tyre
  • Recommended tire sizes: 25 to 32 mm
  • Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2

Information on specified weight

  • The weight of the wheels is announced at +/-5%, in XD/XD-R and Center Lock version, without quick release, nor valve, nor rim tape
SKU 815278
Brand Mavic
Shipping Weight 1.5000kg
Shipping Width 1.120m
Shipping Height 0.550m
Shipping Length 1.000m
Shipping Cubic 0.616000000m3
