Please Note: Front Fork has some slight cosmetic damage marks from shipping. Contact us for photos



The newest version of the Hightower remains one of the greatest hits of engineering - now further refined and bottled into most all-terrain of bikes. Big on wheels, medium on travel, short on fuss, this is the do-it-all model that does it over and over again thanks to a versatile balance of geo, spec and durability. If you’re not looking for extremes, just something extremely good, the Hightower is your elevator.



Features

VPP

VPP™ suspension can be optimized to strike the right balance between pedaling efficiency and all-out bump chomping prowess. That means wherever you see "VPP" you know it's tuned to perform exactly how it should for the purpose it's designed for.

145mm VPP travel

Looking for something good at climbing, and downhill, and going round and round your local trails? Say hello to Hightower. 145mm in the rear paired with 150mm up front is your perfect combo.

Suspension sensitivity

Compared to the last Hightower, we reduced the anti-squat in the first 40% of travel. This noticeably improves suspension sensitivity in both climbing and descending scenarios due to reduced chain influence on the suspension.

Suspension consistency

Hightower's leverage curve is relatively straight, with added progression towards the end of the travel. This provides improved bottom-out resistance with more consistent damping and support.

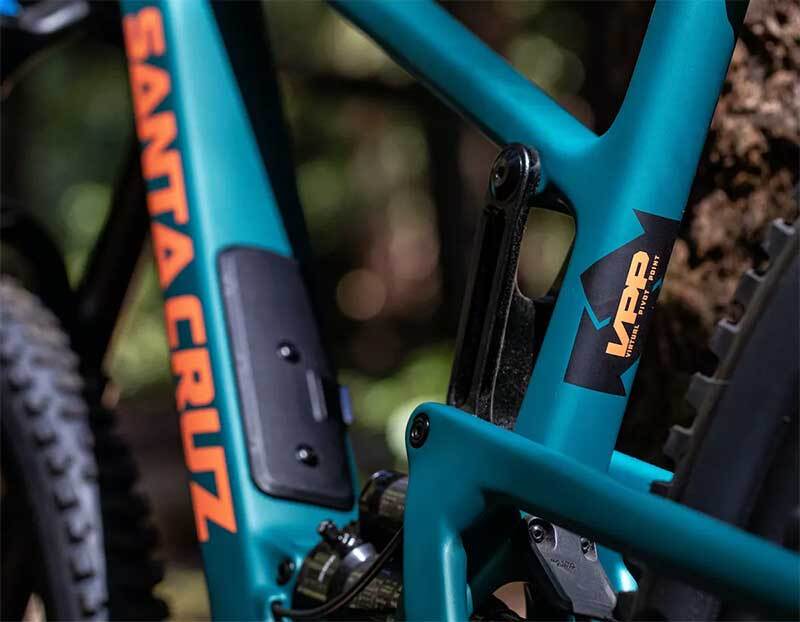

Glovebox

Place your ride essentials securely beneath a new high-quality latch and panel in the Hightower's downtube. The Glovebox comes with a fitted Tool Wallet and Tube Purse, tailored for the frame to keep your tools close to hand.

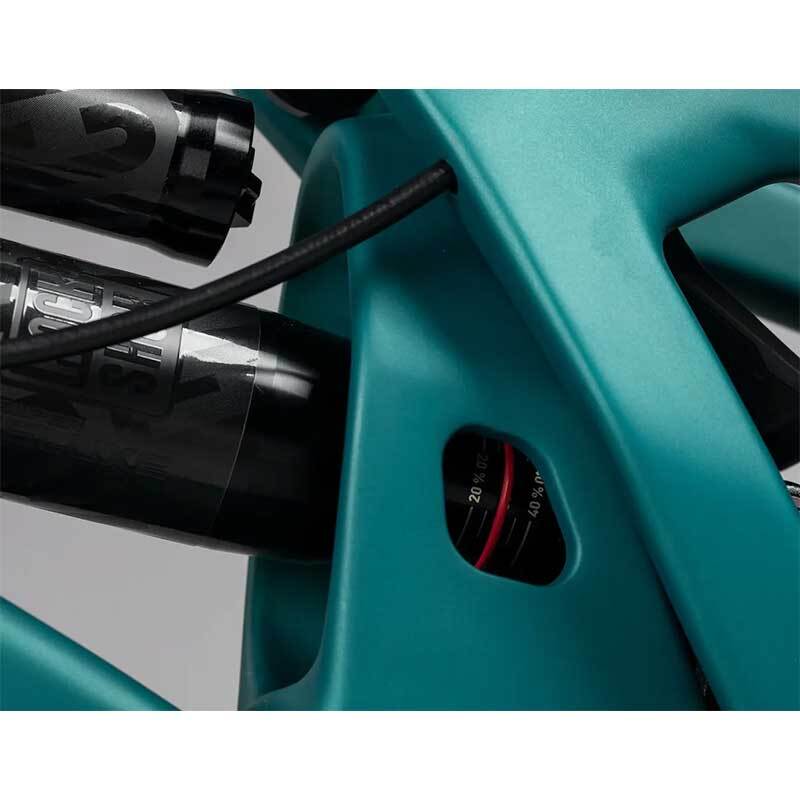

Sag window

A window allows easier suspension sag and setup. The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

Flip chip

In the Low position, the shock rate becomes more progressive, particularly at the end of the stroke, and there’s some bottom-out resistance to be gained. In the High setting, the bike rides a little higher in its travel and supplies the rider with more mid-stroke support. Tweakers and finicky shredders can adapt the suspension feel to their needs and desire.

Proportional geometry

Chainstay length and seat angle is matched to the frame size so every rider, no matter their height, gets the same balanced geometry. Across all sizes however, the headtube angle has been slackened to help stability at speed, lowered the bottom bracket to compliment the better supported suspension, and increased stack in favor of modern handlebar setups.

29-inch wheels

Hightower features fast-rolling, bump-easing 29-inch wheels front and rear. On high-end builds we spec Reserve 30|HD carbon rims laced to premium hubs, which are built and hand-tuned in our Santa Cruz, Calif. factory.



Specifications



Material
Carbon C

Our C Carbon frames use the same proprietary processes of the highest spec CC Carbon frames to match the same legendary strength and stiffness standards. But the use of a different grade of carbon material results in a minimal weight gain.




Rear Shock
Rockshox Super Deluxe Select+ 210x55




Fork
FOX 36 Float Performance Elite, 150mm




Rear Derailleur
SRAM GX AXS Eagle, 12spd




Shifters
GX AXS Controller w/ Rocker Paddle




Cassette
SRAM XG1275 Eagle, 12spd, 10-50t




Chain
SRAM GX Eagle, 12spd




Bottom Bracket
SRAM DUB 68/73mm Threaded BB




Headset
Cane Creek 40 IS Integrated Headset




Rear Tire
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO, TR




Front Tire
Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR




Sealant
Reserve Tubeless Sealant




Front Hub
i9 1/1, 15x110, 28h




Front Rim
RaceFace ARC Offset 30 29"




Rear Hub
i9 1/1, 12x148, XD, 28h




Rear Rim
RaceFace ARC Offset 30 29"




Front Rotor
Avid Centerline 180mm




Rear Rotor
Avid Centerline 180mm




Brakes
SRAM Code RS




Crankset
SRAM GX Eagle 148 DUB 32t




Handlebars
Santa Cruz 35 Carbon Bar, 800mm




Stem
Burgtec Enduro MK3, 42mm




Saddle
WTB Silverado Medium CroMo




Seatpost
RockShox Reverb Stealth, 31.6




Grips
Santa Cruz Bicycles House Grips

Our House Grips have an aggressive knurl pattern for all-weather grip, finger ridges for added control and soft, yet durable rubber compound. They come in either 30 or 32mm width and have an inboard snap-on lock ring to keep them tight but no ring on the outboard side so they’re super comfortable. And they’ll do your taxes* *not true. But they are really good.





Weight

14.39 kg




Travel
150/145mm




Wheel Size
29"

SKU 58-23268-163-3-763
Brand SANTA CRUZ
Shipping Weight 20.0000kg
Shipping Width 1.000m
Shipping Height 0.800m
Shipping Length 0.700m
Shipping Cubic 0.560000000m3
