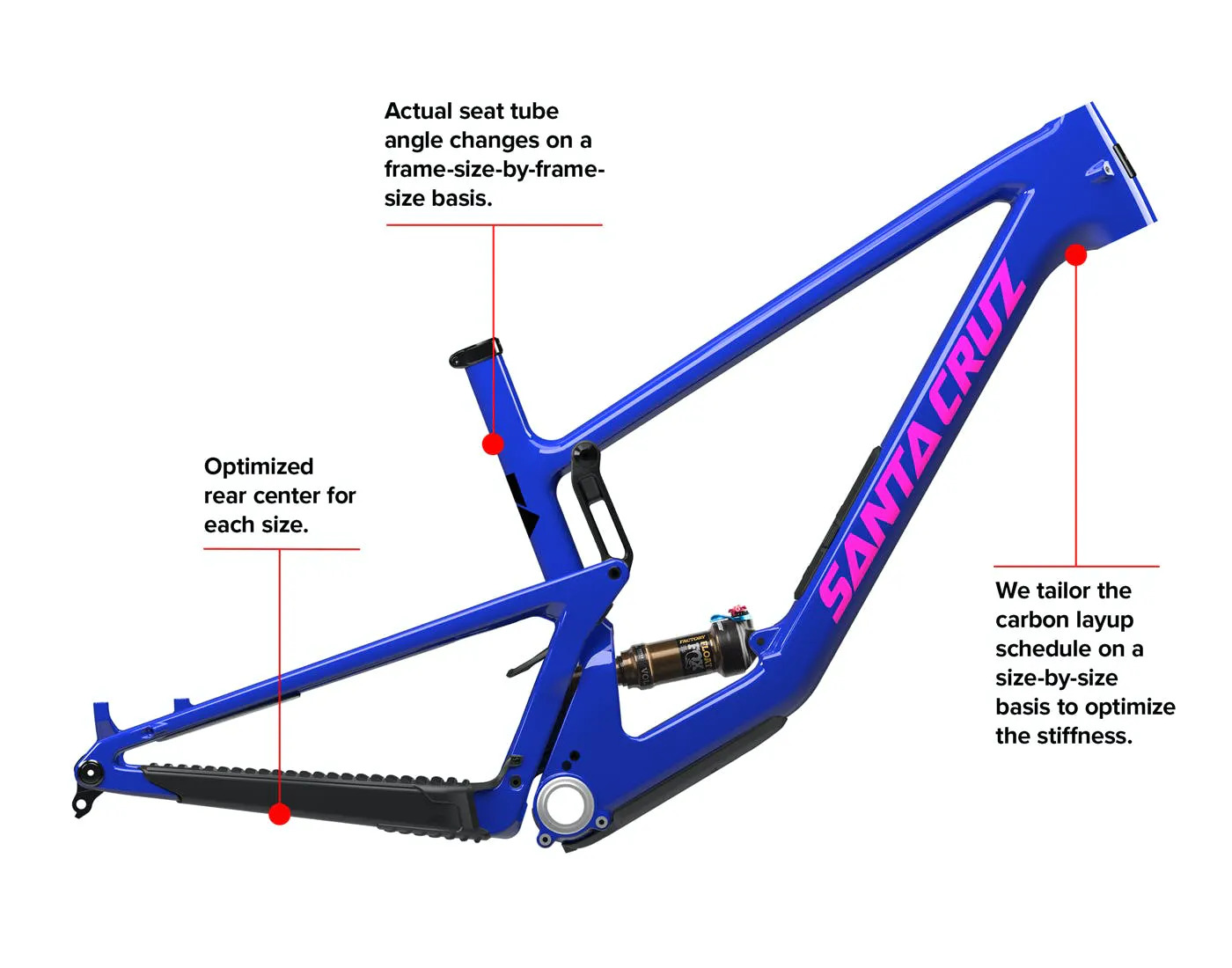

Fully dialed at every size: Proportional Geometry and frame stiffness tune

Chainstay length and seat angle are matched to the frame size (STA steepens and rear centre grows as frame size increases) so that every rider, no matter what height, gets the same balance of geometry and handling characteristics.

We tailor stiffness for every size to make sure everyone gets the same ride quality. Bigger riders means greater stresses on larger frames, but that's remedied with our size-specific frame stiffness tunes.

Compatible Forks: 130mm

Headtube/Headset: Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40

Seat Post: 31.6mm - Minimum Insertion 100mm

Front Derailleur: N/A - Single Front Chainring Only

BB Shell Width: 73mm - Threaded - ISO

Recommended Max Tire Size: 2.5 - may vary by tire and rim model

Max Brake Rotor Size: 220mm

Rear Hub: 148x12mm Through Axle

Seatpost Clamp: 36.4mm

SKU 787516
Brand SANTA CRUZ
Shipping Weight 20.0000kg
Shipping Width 0.250m
Shipping Height 1.400m
Shipping Length 1.500m
Shipping Cubic 0.525000000m3
