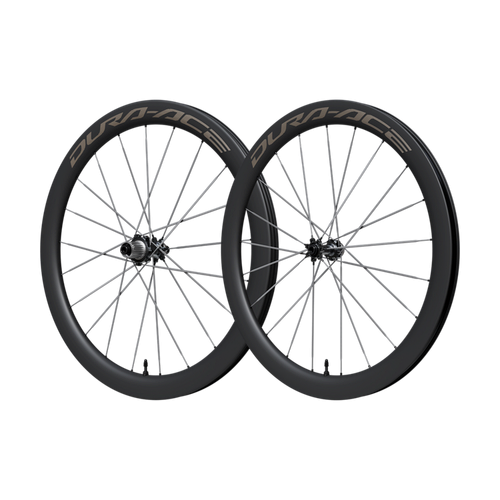

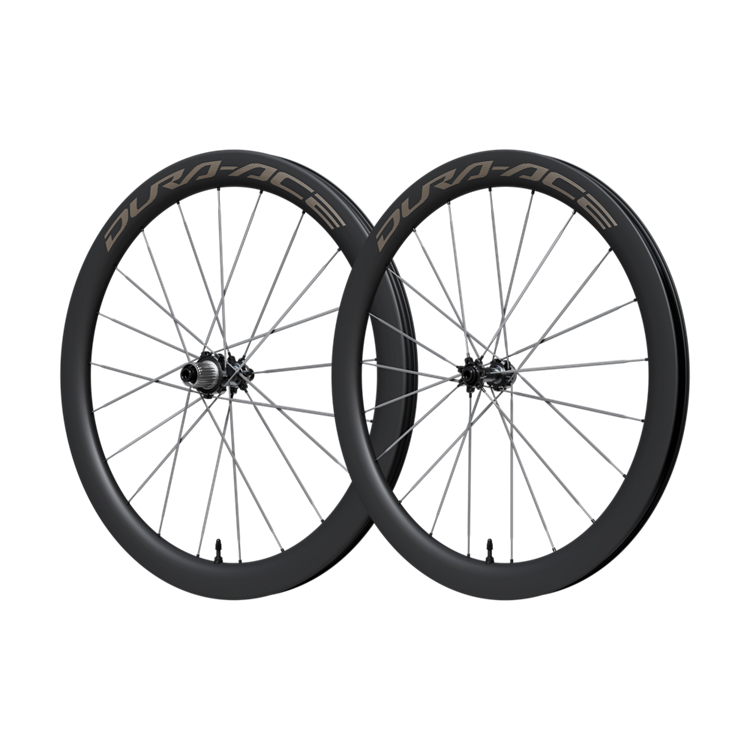

The Shimano Dura-Ace WH-R9370-C50-TL Carbon Disc Wheel is the all-rounder of Shimano’s latest Dura-Ace wheel range, combining aerodynamic efficiency, low weight and responsive handling for racing across varied terrain.

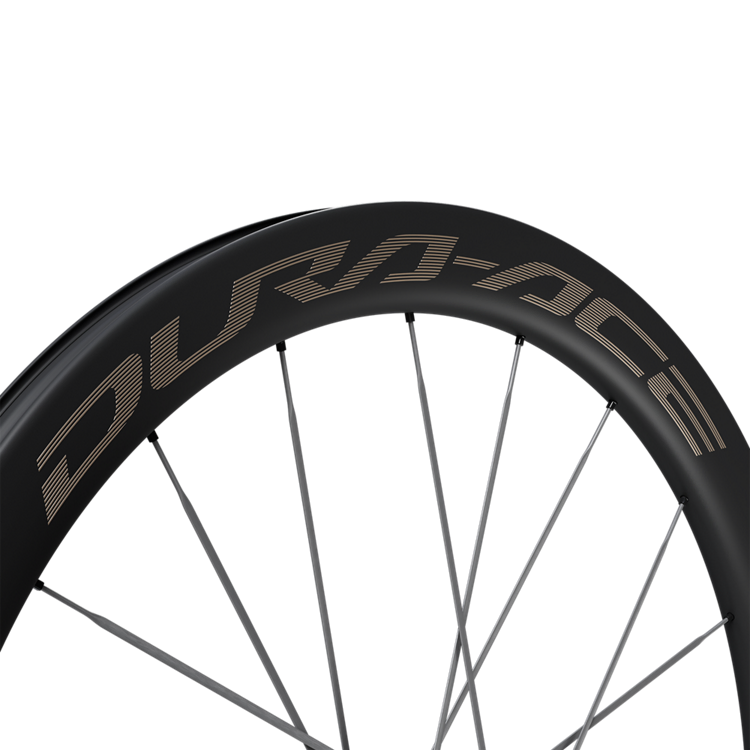

Its versatile 50mm carbon rim provides the speed advantage of a deeper profile while remaining light and composed enough for climbing, rapid changes of pace and technical cornering.

Carbon spokes, a revised carbon rim layup and an updated hub architecture reduce the complete wheelset weight to a claimed 1,302g per pair—159g lighter than the previous WH-R9270-C50 wheelset. This delivers a sharper response under acceleration without sacrificing the lateral rigidity required for sprinting and high-speed racing.

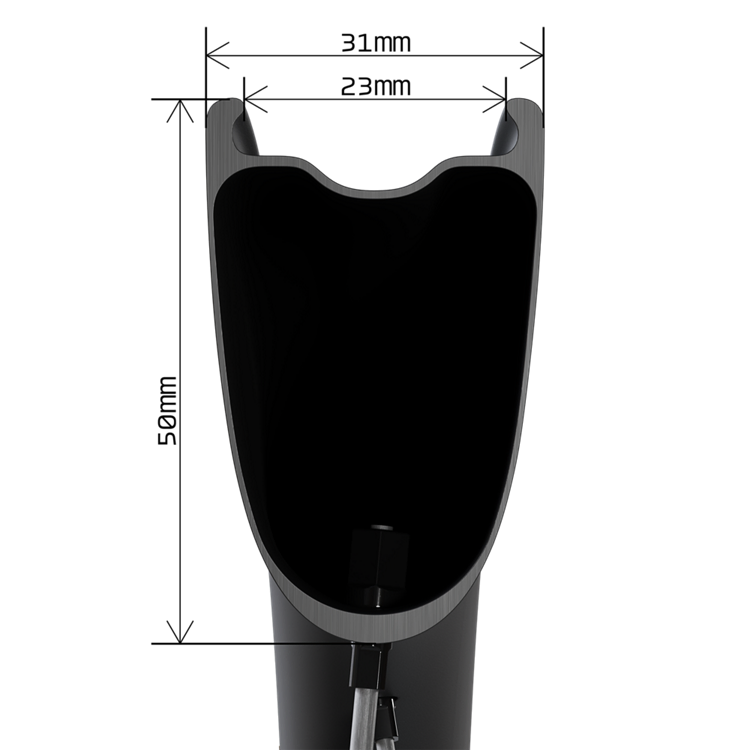

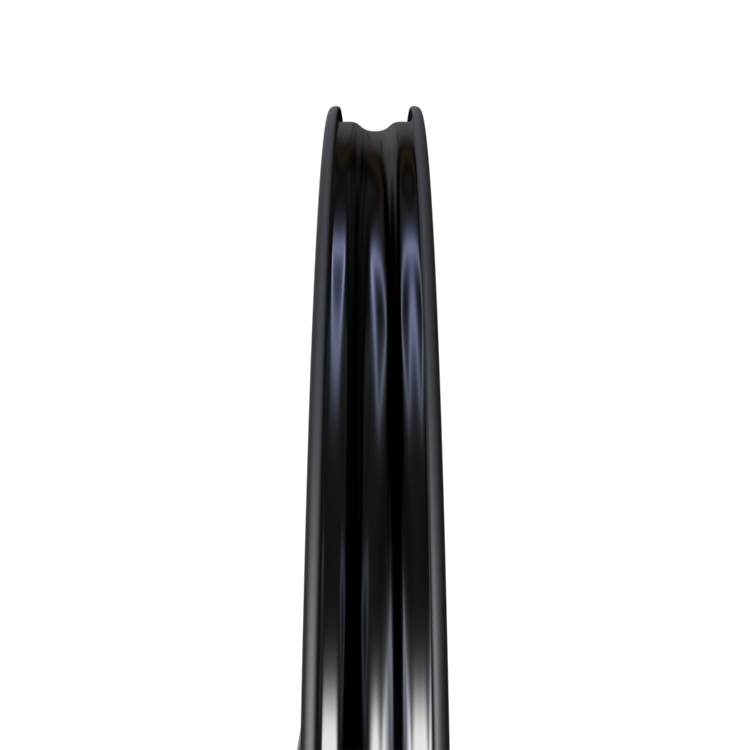

The new rim profile was developed through more than 5.4 million shape simulations and delivers a claimed 6% aerodynamic improvement over the previous C50. A 23mm internal rim width, designed around modern 28–30C road tyres, provides excellent tyre support while helping to reduce rolling resistance and maintain stability.

Front- and rear-specific external rim widths further refine airflow around the tyre, measuring 31mm at the front and 32mm at the rear.

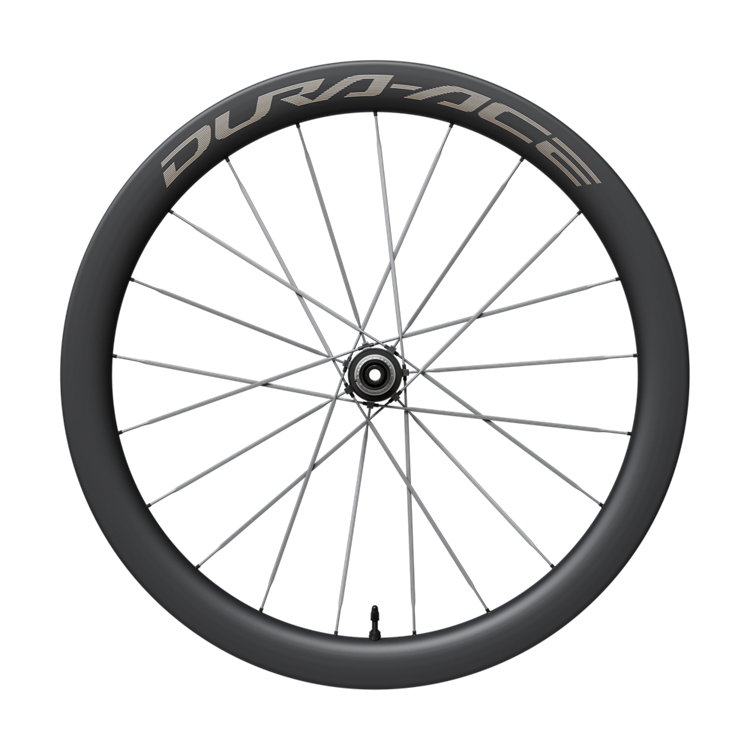

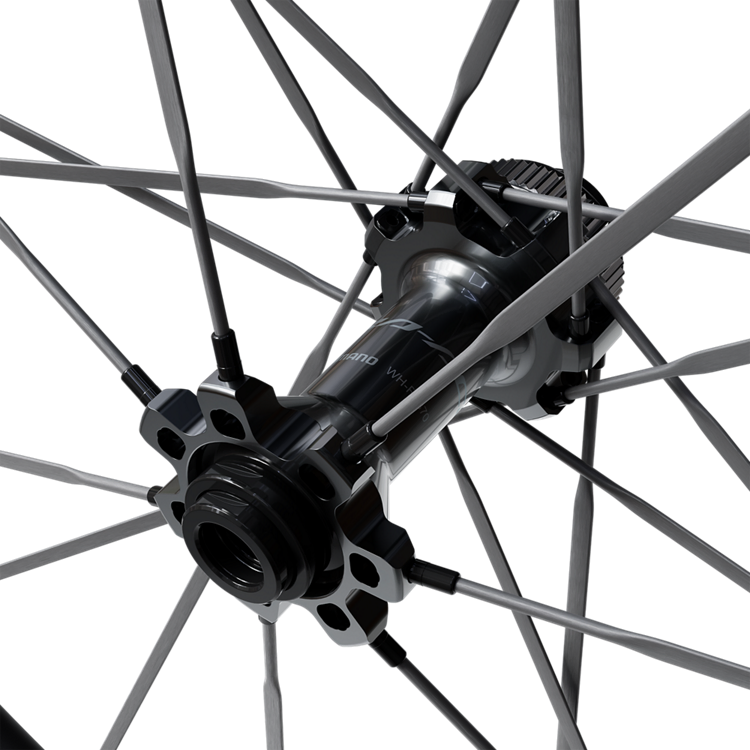

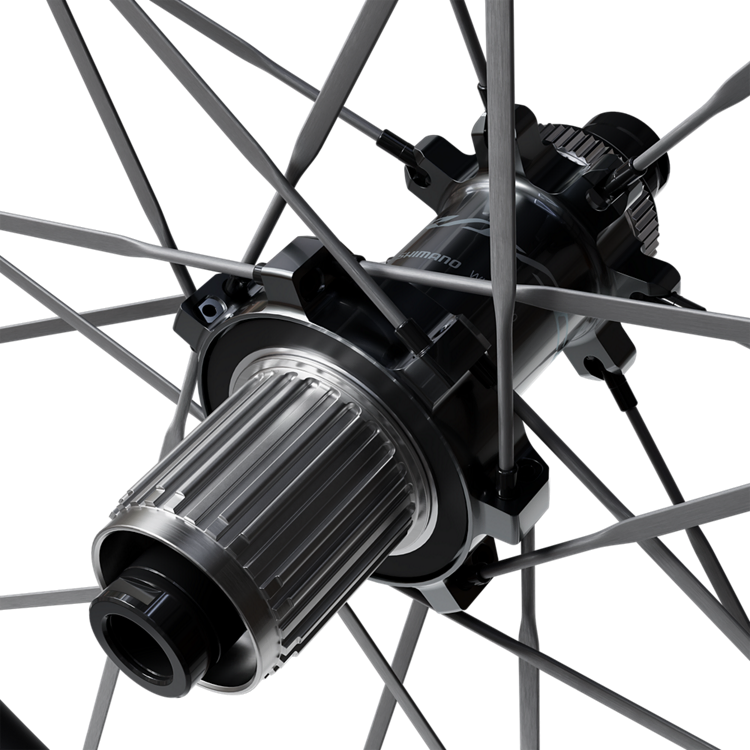

Straight-pull bladed carbon spokes provide an efficient balance of stiffness and low rotational weight. Shimano’s serviceable cup-and-cone bearing system offers smooth running, precise adjustment and long-term durability, while the rear wheel features Direct Engagement technology for responsive power transfer when accelerating or attacking.

With its hooked tubeless-ready carbon rim, 12mm E-THRU axle system and CENTER LOCK disc-brake interface, the Dura-Ace WH-R9370-C50-TL is a premium race wheel for riders seeking speed and versatility across climbs, rolling roads, criteriums and fast road racing.

Key Features

  • 50mm carbon rim depth for versatile aerodynamic performance
  • Claimed wheelset weight: 1,302g
  • Claimed front-wheel weight: 593g
  • Claimed rear-wheel weight: 709g
  • 159g lighter per pair than the previous WH-R9270-C50
  • Claimed 6% aerodynamic improvement
  • 23mm internal rim width developed around 28–30C tyres
  • Front-specific 31mm external rim width
  • Rear-specific 32mm external rim width
  • Straight-pull bladed carbon spokes
  • 21-spoke front and rear configurations
  • Hooked tubeless-ready carbon rim
  • Serviceable Shimano cup-and-cone bearings
  • Direct Engagement rear-hub system
  • CENTER LOCK disc-brake compatible
  • 12 x 100mm front and 12 x 142mm rear axle compatibility
  • 700C wheel size
  • Rear wheel supplied with a Shimano HG L2 freehub

SKUs:

  • Front: EWHR9370C50LFED
  • Rear: EWHR9370C50LRED





























SKU 3397633
Brand Shimano
Shipping Weight 2.5000kg
Shipping Width 0.660m
Shipping Height 0.250m
Shipping Length 0.800m
Shipping Cubic 0.132000000m3
