A new level of performance for SHIMANO 12-speed road rear derailleurs

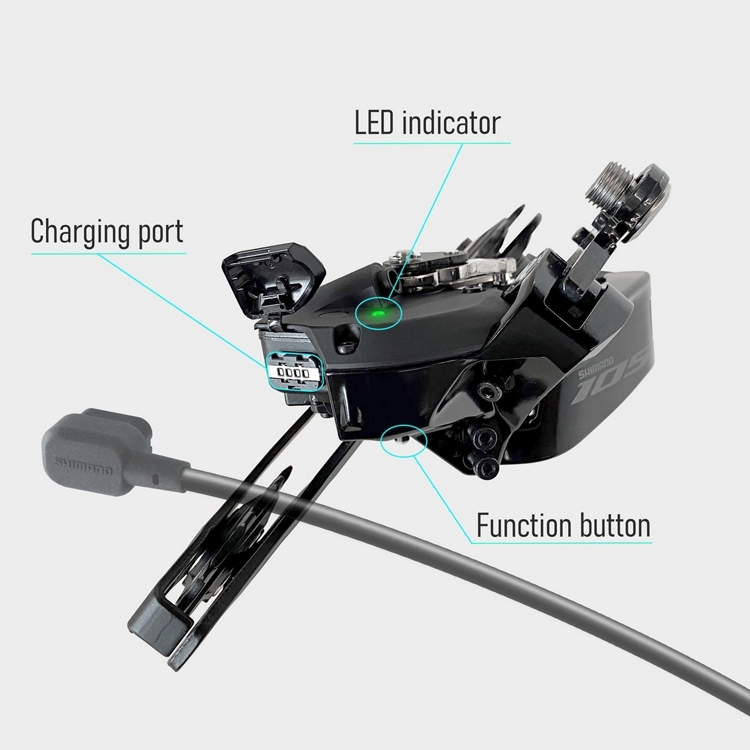

Wide 36T-compatible 12-speed Di2 rear derailleur. Receiving the wireless shifting signal from the shift lever, the SHIMANO 105 rear derailleur completes a shift in the blink of an eye with its high-performance motor and optimized link structure. This is the hub of the Di2 system, with the charging port, indicator LEDs, adjustment switches and more integrated into a compact package. A low-profile design reduces damage from contact and falls.

FEATURES

  • Compact design includes an integrated wireless unit, charger, switch
  • LED status indicator
  • Battery indicator
  • Pairing
  • Adjust mode, etc.
  • Wider range capacity
  • Max. low sprocket: 36T

Product Specifications

MODEL NO RD-R7150
SERIES SHIMANO 105 R7100 Di2 Series
Color Series color
Remarks w/o Bracket spec. available

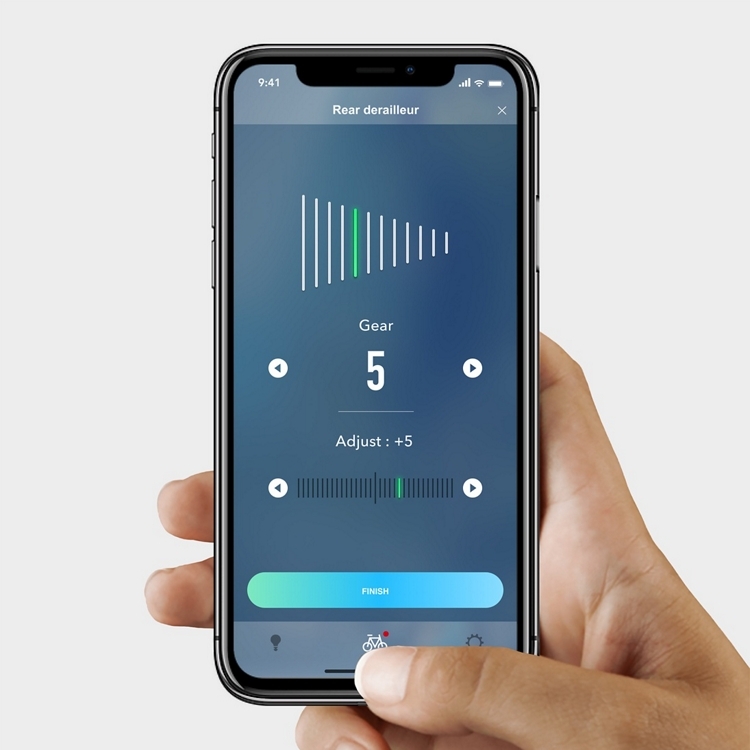

Firmware update by E-TUBE PROJECT
Total capacity 41T
Charging port (pcs)
B-axle_Hollow axle
B-axle 2_Hollow axle
Mount_Direct attachment (Conventional)
Mount_Direct Mount
Fluoric coated link bushings 4
Low sprocket_Max. 36T
Low sprocket_Min. 34T
Max. front difference 16T
Pulley_Sunken type pulley bolt
Pulley_Teeth 11
Top-normal spring type_SHIMANO SHADOW RD
Top sprocket_Max. 11T
Top sprocket_Min. 11T
Rear speeds 12
Charging cable EW-EC300
Di2 connectivity wired_Di2 shifting
Di2 connectivity wireless_ANT private (*2)_Adjust mode information
Di2 connectivity wireless_ANT private (*2)_Di2 battery level
Di2 connectivity wireless_ANT private (*2)_Gear position
Di2 connectivity wireless_ANT private (*2)_SHIMANO STEPS data items (*3)
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Adjust mode information
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Compatible with E-TUBE PROJECT
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Compatible with E-TUBE RIDE
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Di2 battery level
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Gear position
Di2 connectivity wireless_Bluetooth® LE custom (*1)_SHIMANO STEPS data items (*3)
Di2 connectivity wireless_Di2 shifting
LED for system status
SD300 connector (pcs) 0
SD300 port (pcs) 1
SD50 connector (pcs) 0
SD50 port (pcs) 0
SKU IRDR7150E
Barcode # 4550170234225
Brand Shimano
Shipping Weight 0.4620kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.170m
Shipping Cubic 0.002040000m3
