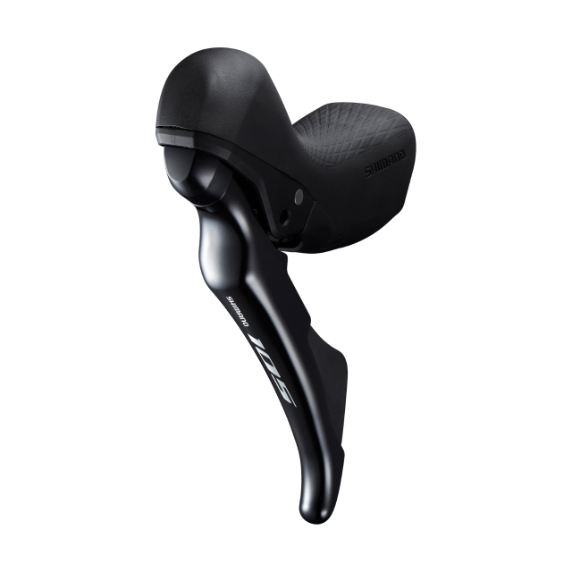

The Shimano 105 ST-R7020 Left Dual Control Lever combines precise front shifting with confident hydraulic disc-brake operation in a comfortable, ergonomically refined road lever. Designed for Shimano 105 R7000-series 2×11-speed drivetrains, the left-hand lever controls a double-chainring front derailleur while operating the front hydraulic disc brake.

Its redesigned internal shifting mechanism delivers a light, intuitive action, particularly when paired with the Shimano 105 FD-R7000 front derailleur. Ergonomics inherited from Shimano’s higher-tier Ultegra components provide a secure and comfortable grip, while the adjustable lever reach allows the position to be tailored to different hand sizes.

The hydraulic braking system provides controlled, consistent stopping performance in wet and dry conditions, making the ST-R7020 a dependable choice for road, endurance, gravel and cyclocross applications. It is suitable for replacing a damaged lever or completing a Shimano 105 mechanical 2×11-speed hydraulic-disc cockpit.

Key features

  • Shimano 105 R7000-series Dual Control lever
  • Left-hand lever for double-chainring drivetrains
  • Combines mechanical front shifting and hydraulic braking
  • Designed for Shimano 2×11-speed road drivetrains
  • Light and intuitive shifting action
  • Refined ergonomics derived from Shimano Ultegra
  • Adjustable lever reach for improved fit and control
  • Greater braking confidence in changing weather conditions
  • Optimised for use with the Shimano FD-R7000 front derailleur
  • Compatible with Shimano mineral-oil hydraulic disc brakes
  • Black finish
  • Supplied as one left-hand lever only

Specifications

  • Brand: Shimano
  • Series: Shimano 105
  • Model: ST-R7020-L
  • Shimano part number: ISTR7020LIL
  • Position: Left
  • Front speeds: 2
  • Intended drivetrain: Shimano mechanical 2×11-speed
  • Lever type: Dual Control
  • Brake type: Hydraulic disc brake
  • Recommended front derailleur: Shimano FD-R7000
  • Recommended brake caliper: Shimano BR-R7070
  • Recommended brake hose: Shimano SM-BH90-JK-SSR
  • Brake fluid: Shimano mineral oil
  • Handlebar clamp diameter: 23.8–24.2mm
  • Reach adjustment: Yes
  • Colour: Black
  • Barcode: 4524667241546

Please note: this listing is for the left-hand lever only. The right-hand lever, brake caliper, rotor, brake hose, mineral oil and associated installation components are not included unless otherwise stated.

SKU ISTR7020LIL
Barcode # 4524667241546
Brand Shimano
Shipping Weight 0.5500kg
Shipping Width 0.210m
Shipping Height 0.075m
Shipping Length 0.170m
Shipping Cubic 0.002677500m3
