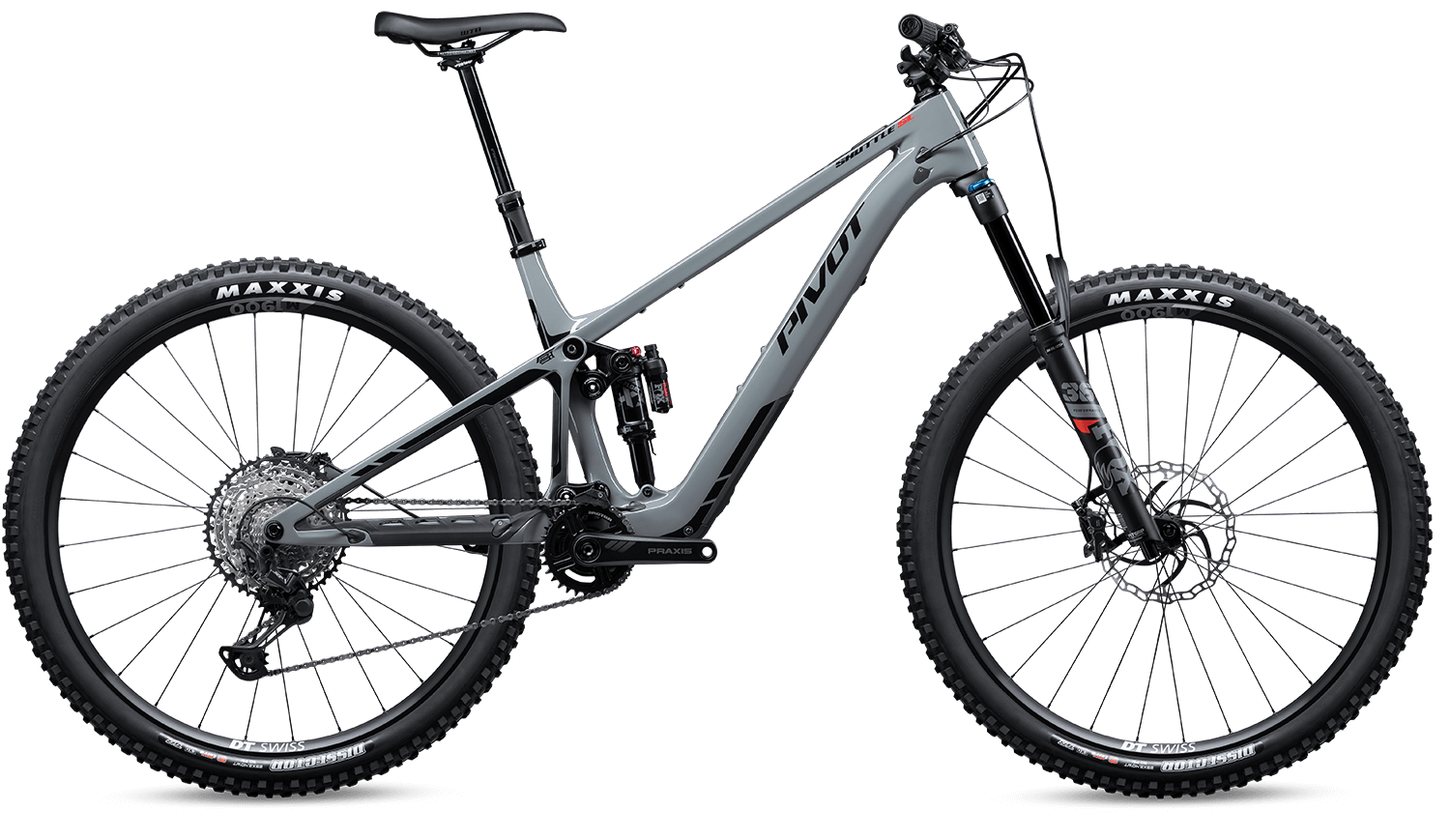

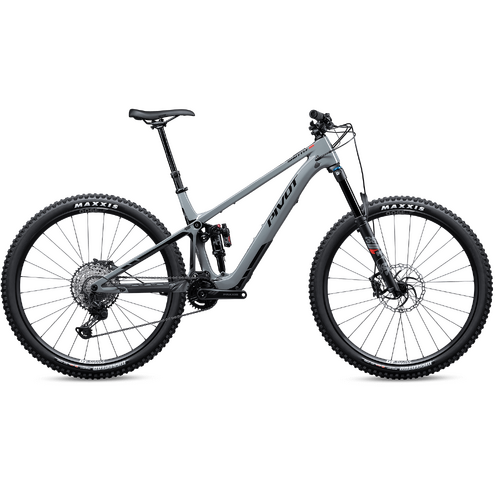

Trail Riding's New Pulse

The Shuttle SL bridges the gap between an analog bike and E-bike and gets you much closer to that traditional analog feel, it’s almost imperceptible when riding the Shuttle SL. We did this by honing in on the power to weight ratio, to create a playful, yet powerful e-bike.

The Speed of Silence

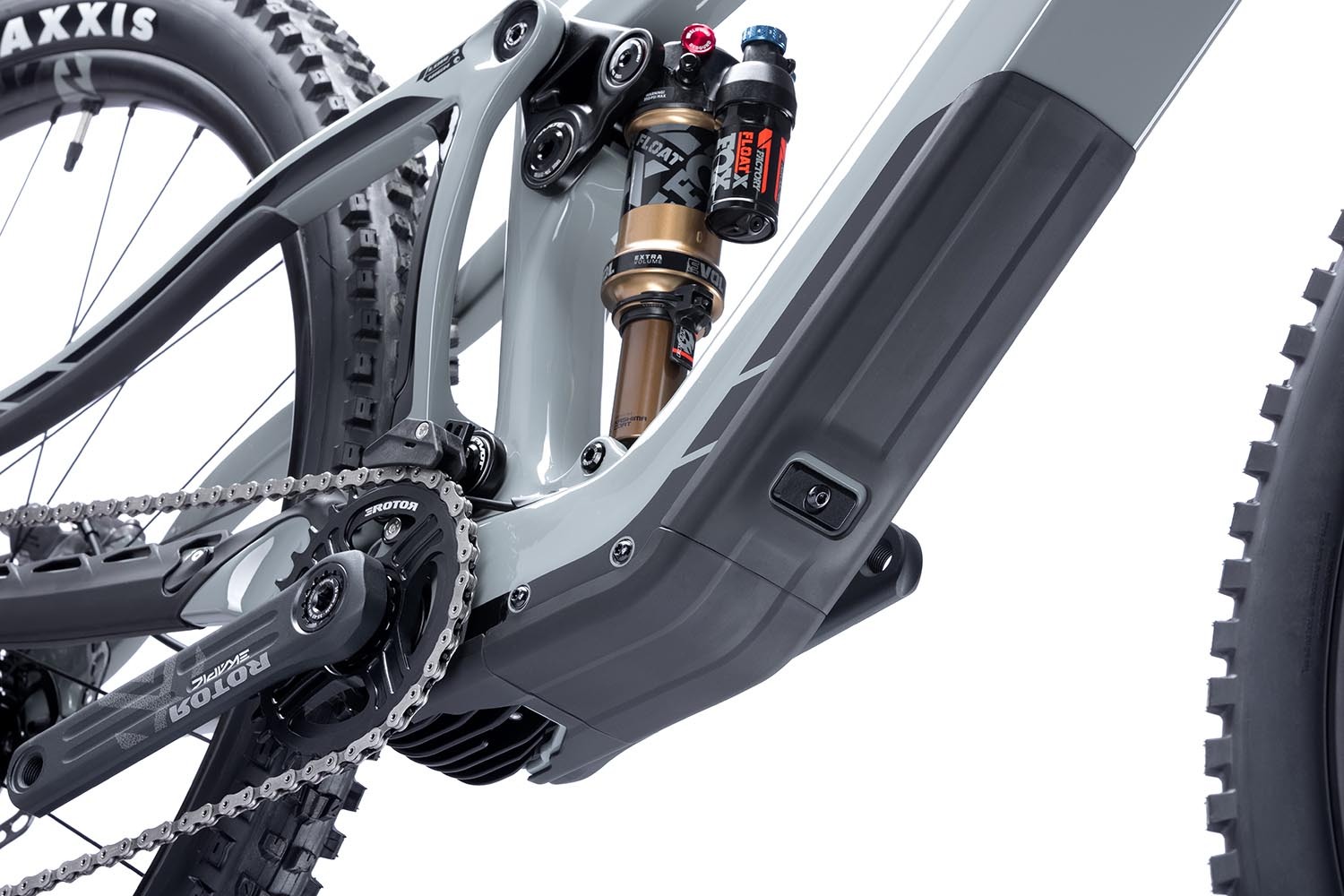

A 60Nm FAZUA motor, combined with a 430wH battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The motor and battery are situated low and close to the center of gravity – a key aspect of the Shuttle SL’s dynamic handling.

Accelerate!

Flipping the script that most e-bike builders are following, we decided to focus on what matters – the dynamic of trail riding – and placed an emphasis on light weight, refined suspension, crisp handling, and game-changing performance.

Defined and Redefined

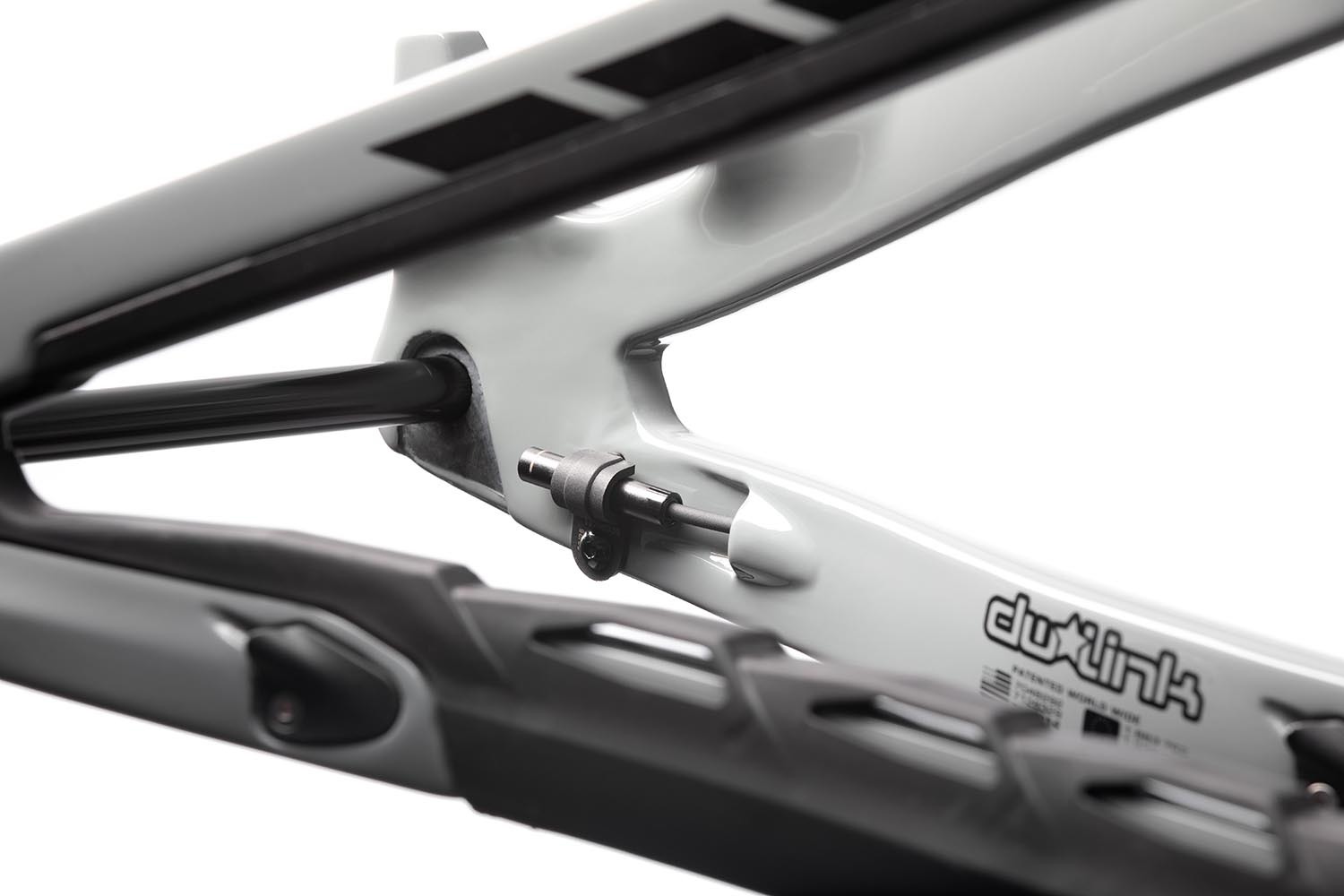

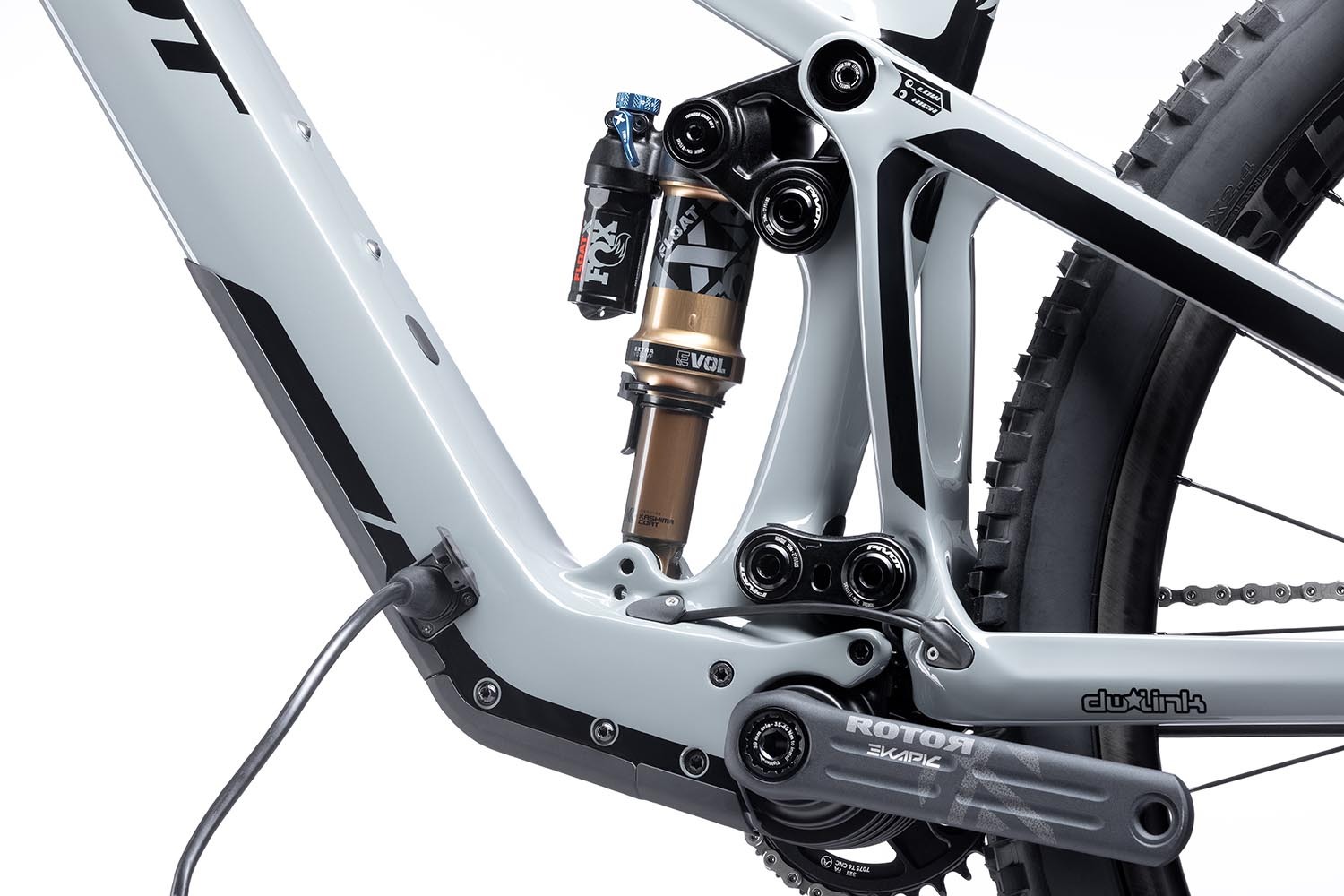

Pivot’s proprietary carbon fiber construction is integral to the Shuttle SL’s light weight and taut handling. The dw-link suspension kinematics are perfectly adapted to provide plush compliance and efficient pedaling, lots of pop for dynamic riding, and enough progression to swallow high speed big hits.

Specifications

Frame

- Shuttle SL

Material

- Carbon

Wheel Size

- 29"

Rear Shock

- Fox Performance Float X

Fork

- Fox Performance E-MTB 36 29”, 44mm offset, GRIP - 150mmon

Headset

- Pivot Precision Sealed Cartridge

Rear Derailleur

- Shimano XT M8100 SGS 12-Speed

Shifter

- Shimano SLX M7100 ISPEC EV 12-Speed

Brakes

- Shimano SLX M7120 4-piston

Crankset

- PRAXIS ETOR E-MTB 32t

Drive Unit

- FAZUA RIDE 60

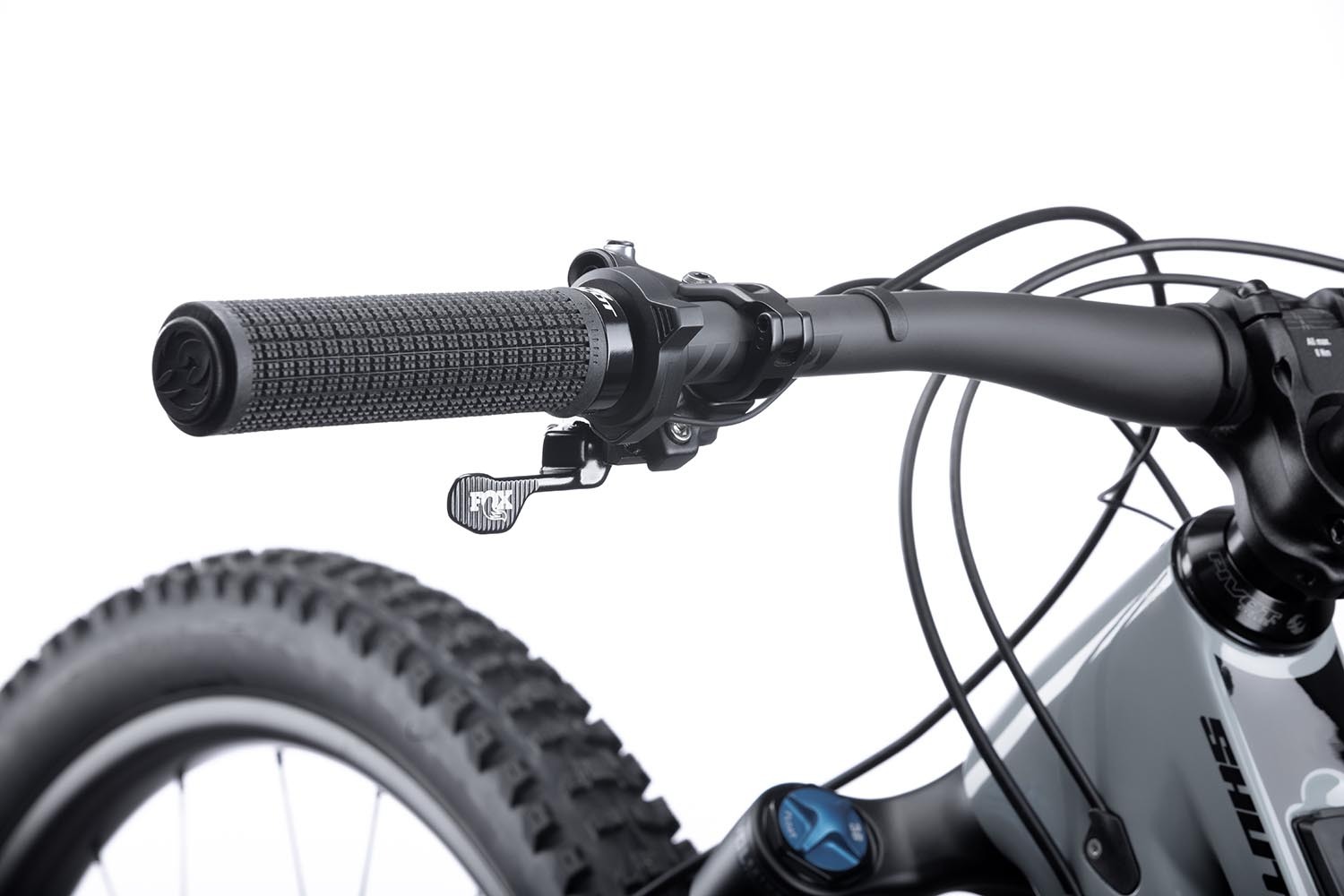

Handlebar

- Phoenix Race Low Rise Aluminum -780mm

Grips

- Phoenix Factory Lock-On

Stem

- Phoenix Team Enduro/Trail

Seatpost

- E13 Vario 150mm - 180mm (SM-MD), 180mm - 210mm (LG-XL)

Saddle

- Phoenix WTB Volt Race (Medium Width)

Cassette

- Shimano SLX M7100 10-51t

Wheels

- DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29” / 15x110 F/12x157 R

Tires

- Maxxis Dissector 29” x 2.4” WT, TR, 3C, EXO, MAXXTERRA

Rotors

- Front/ Galfer Rotor 203mm | Rear/ Galfer Rotor 180mm

Chain

- Shimano CN-M7100 12-Speed

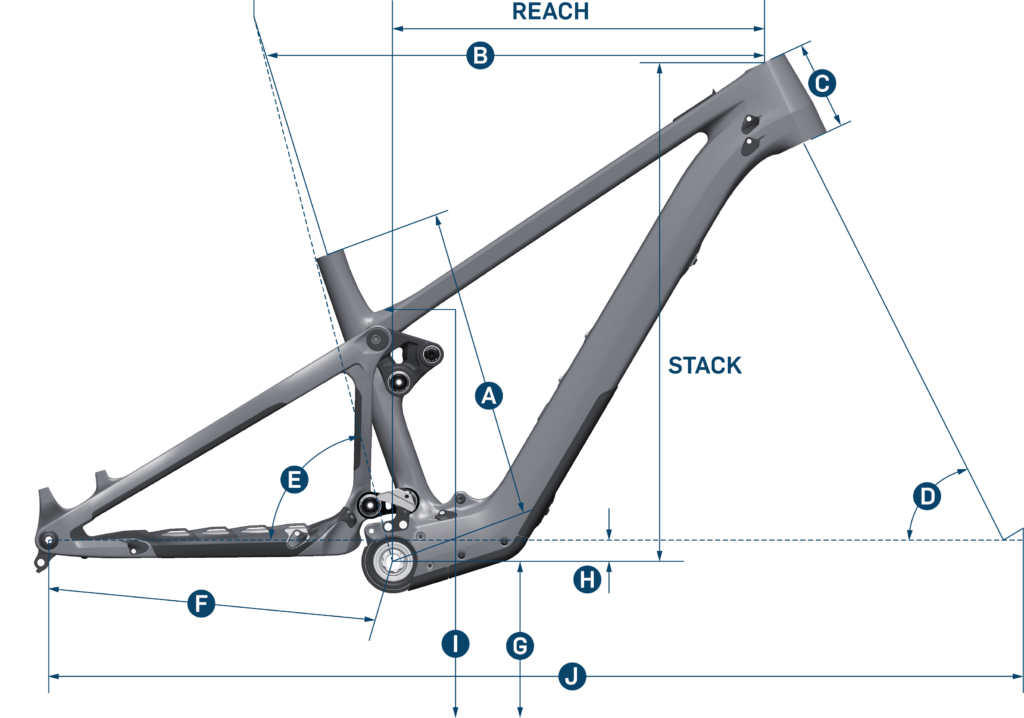

Geometry

(Measurements for SMALL)

A Seat Tube Length (C-T)

- 36.8 cm

B Top Tube Length

- 59.7 cm

C Head Tube Length

- 9.5 cm

D Head Tube Angle

- 65.5°

E Seat Tube Angle

- 76.5°

F Chain Stay Length

- 43 cm

G Bottom Bracket Height

- 35.2 cm

H Bottom Bracket Drop

- 2.14 cm

I Standover Height

- 67.4 cm

J Wheelbase

- 118.5 cm

Stack

- 60.7 cm

Reach

- 43.9 cm

SKU Shuttle_PB22
Brand Pivot
Shipping Weight 25.0000kg
Shipping Width 0.500m
Shipping Height 0.800m
Shipping Length 1.500m
Shipping Cubic 0.600000000m3
